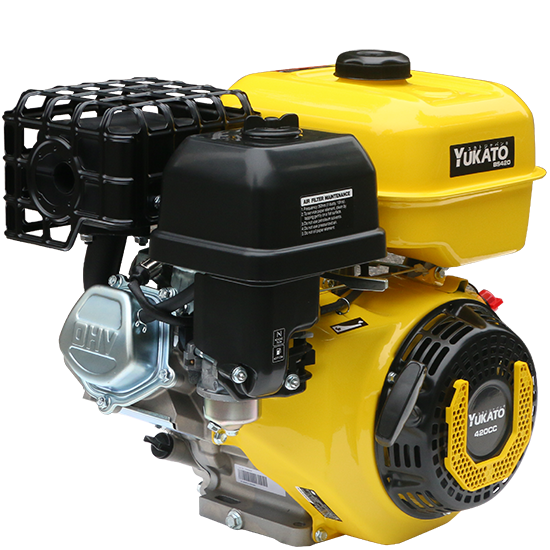

BS420 420cc Yukato Engine

Brand Original from Japan , with 2 Year Limited Warranty!

Anti-drop Knob

Anti-drop Knob design for Air Filter

Muffler Protection Mesh

Patented U-Shape Recoil Starter

The knob now is connected with air filter cover,

and better sealed to keep the filter elements dry.

keeps safety and avoids scalding

Recoil starter is designed ergonomically, and the spring is

Model No.	BS420
Engine type	Forced air-cooling, 4-stroke, OHV, horizontal shaft
Bore x Stroke (mm)	90 x 66
Displacement (cm³)	420 cm³
Compression Ratio	8.5 : 1
Announced Max. Power	15 HP
Max. Net power / 3600 rpm	10.1 kW (13.5 HP)
Cont. rated power / 3600 rpm	8.1 kW (10.8 HP)
Cont. rated power / 3000 rpm	7.5 kW (10.0 HP)
Net Torque (Nm / 2500 rpm)	27.5 Nm
Idle speed (rpm)	1750±50
Ignition System	Transistorised Magneto Ignition
Starting System	Recoil (electric start optional)
Fuel Tank Capacity (L)	7.5
Engine Oil Capacity (L)	1.1
Fuel cons. at cont. rated power	4.0 L/h - 3600 rpm
Fuel Consumption (g/kw.h)	≤375
Net / Gross Weight (kg)	30.5/33.5
Dimension (l×w×h mm)	456×355×459
Container load Pcs (40'HQ)	220/574
