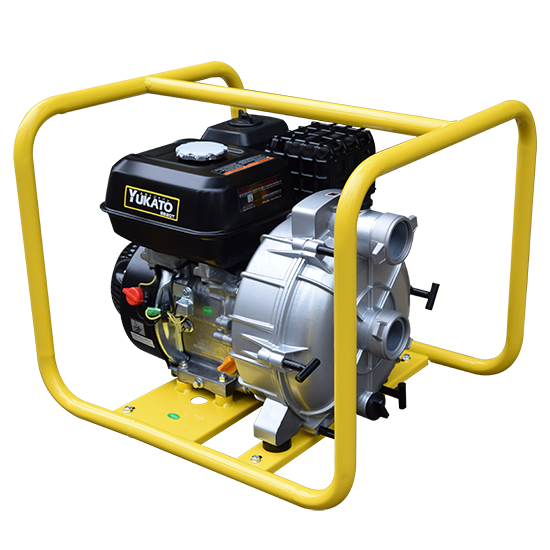

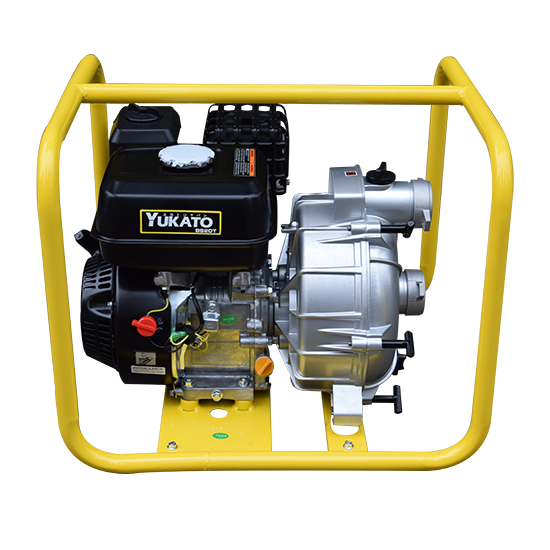

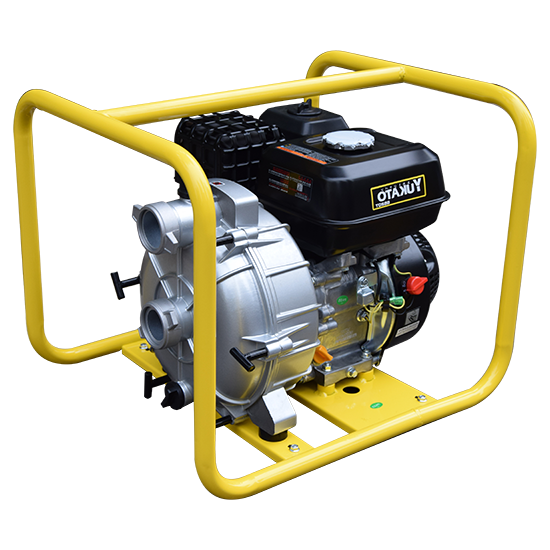

BS series general gasoline water pump

Model	BS20	BS30	BS40
Inlet diameter (mm)	50	80	100
Outlet diameter (mm)	50	80	100
Measured sound pressure level (dBA)	≤92	≤95	≤96
Self-priming time at 5m (s)	≤130	≤160	≤200
Max speed (r/min)	3800	3800	3800
Engine model	BS200	BS200	BS210
Max. power (kW)	4.5	4.5	4.6
Fuel tank capacity (L)	4.2	4.2	4.2
Oil capacity (L)	0.6	0.6	0.6
Net weight (kg)	24	26	34
Dimension (mm)(L x W x H)	480x395x400	510x395x420	610x440x530

Model	BS15H	BS20H	BS30H
Inlet diameter (mm)	40	50	80
Outlet diameter (mm)	40/25/25	50/40/40	65/40/40
Measured sound pressure level (dBA)	≤96	≤96	≤100
Self-priming time at 5m (s)	≤300	≤300	≤230
Max speed (r/min)	3800	3800	3800
Engine model	BS200	BS200	BS420
Max. power (kW)	4.5	4.5	9
Fuel tank capacity (L)	4.2	4.2	7.5
Oil capacity (L)	0.6	0.6	0.6
Net weight (kg)	33	27	50
Dimension (mm)(L x W x H)	510x415x440	510x415x440	595x510x510

Model	BS20C	BS20T	BS30T
Inlet diameter (mm)	50	50	80
Outlet diameter (mm)	50	50	80
Measured sound pressure level (dBA)	≤96	≤96	≤96
Self-priming time at 5m (s)	≤200	≤200	≤200
Max speed (r/min)	3800	3800	3800
Engine model	BS200	BS200	BS200
Max. power (kW)	4.5	4.5	4.5
Fuel tank capacity (L)	4.2	4.2	4.2
Oil capacity (L)	0.6	0.6	0.6
Net weight (kg)	25	33	38
Dimension (mm)(L x W x H)	535x420x440	545x470x450	570x495x485
